System no..: PW510

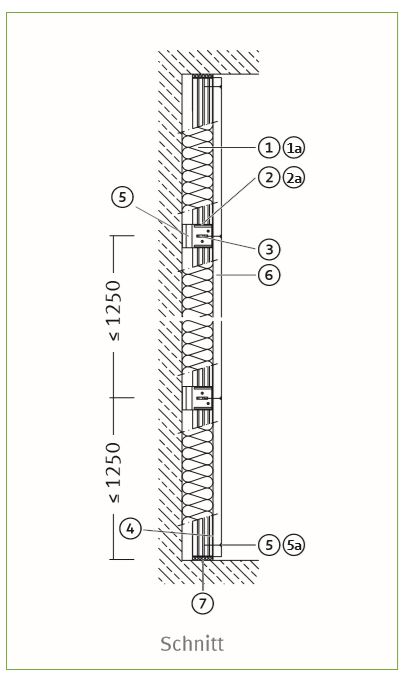

facing shell with adjusting oscillating clamps, si

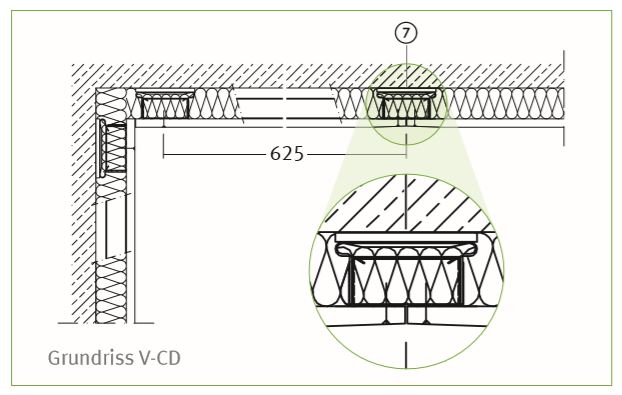

Type of facing shell: V-CD 30/42.5 V-UW 50/62.5

General remarks

  •  Filler profiles for edges, connections and ends etc. as required.
  •  When planking the substructure with other cladding materials, e.g. gypsum fiber boards, special fire protection boards, chipboards, etc., the technical data and processing guidelines of the respective manufacturer must be observed!
  •   The technical data in the adjacent tables refer to DIN constructions. For further constructions with technical data, refer to the documents of the various planking manufacturers.
  •  Facing shell system as a substructure covered on one side with GK panels made of free-standing CW profiles without connection to the solid wall to improve thermal and/or sound insulation.

Specifications

Thickness ≥ 42,5mm, ≥ 62,5
Variants V-CD 30/42,5 V-UW 50/62,5
Fire protection Keine Berücksichtigung
Sound insulation je nach Massivband ∆ RW,R bis 12

Downloads

DATA SHEET (PDF)

Products

Products in this system

5120

C-ceiling profile with square return

Application area: suspended ceilings and wall facings.

5168

U connection profile

Application area: connection profile for hanging ceilings and wall facings.

5230

U-wall profile

Application area: connection profile for walls/wall faces or for free-spanning ceilings.

6156

Adjustable pivot bracket for C 60-27

For attaching CD profiles on wall facing.

6187

Mixed fibre fleece one-sided self-adhesive

Application area: connection sealing strips for self-gluing one side of dividing walls. Building material class B3.

6239

Sheet metal screw with drillpoint

Sheet metal screw with cross-head and screw tip for sheet metal thicknesses of up to 0.7 mm, with outside head diameter of 11 mm.

6248

Hammer-in anchor

For installing UW profiles with a drilling diameter of 6 mm. Max. mounting thickness of 12 mm. Not suitable for suspended ceilings!
